CC1300F TYPE 12

By Deysi Merino | March 14, 2024

UL Listed for TYPE 12 environments
CC1300F Rated Cooling: 1,500 Watts at 20°C ∆T. (75.0 W/°C, mounted to an uninsulated 72" x 36" x 24" cabinet)
Designed for surface mounting on outside of cabinet
Housing is aluminum (Standard Color). Stainless Steel is available
Equipped with mounting gasket to maintain air tight seal
Internal 6-ft. power cord with 3-prong plug is standard for AC powered units
Available with VAC (115 & 230) and VDC (12, 24 & 48) fans. DC powered units include junction box, consult website.

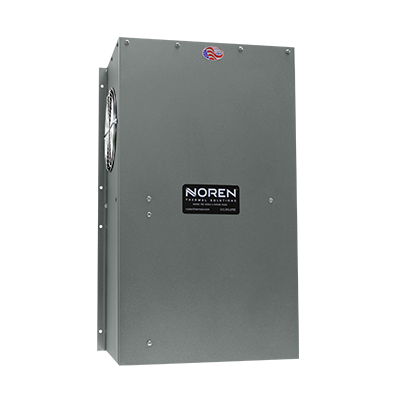

Unit may be mounted vertically (as shown) or horizontally
Optional: inlet air-filter kit available upon request

						Dimensions-Inches
Model	Weight (lbs)	Rating (Watts) @ 20 °C ▲T	Rating (BTU/hr) @ 20 °C ▲T	Amps Current Draw at 115 V	Fan Size	Height	Width	Depth
CC1300F	22	1,500	5,100	0.6	2 x 6"	22	13.8	7.8
75.0 Watts /°C ∆T based on average internal cabinet temperature
